Backbone Optimization — Tobias Engineering Studios

Backbone weldments are used to hold tooling in a welding cell. In this research, the stresses in current and potential designs for weld-cell backbones were analyzed.

FEA studies for factor of safety, maximum stress and deflection were conducted using SolidWorks Simulation. Total tooling loads from 0 to 4000 lbf in varying configurations were applied to each backbone.

After the initial research, a new design was analyzed. By selecting the new 102” x 24” design with 2” x 2” x 0.25” tube and 0.75” top plates over the old 102” x 36” design with 3” x 3” x 0.25” tube and 0.5” top plates, backbone weight reduced by 32% and total material cost by 18%.

Horiz Orientation.png

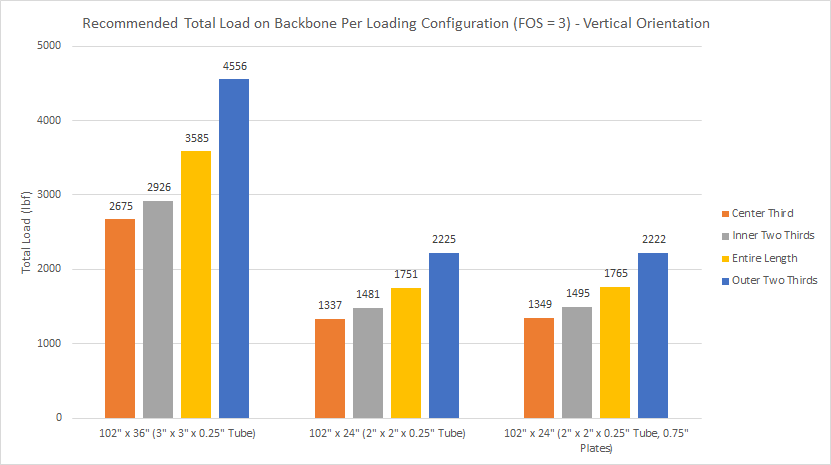

Vert Orientation.png

Material Cost.png

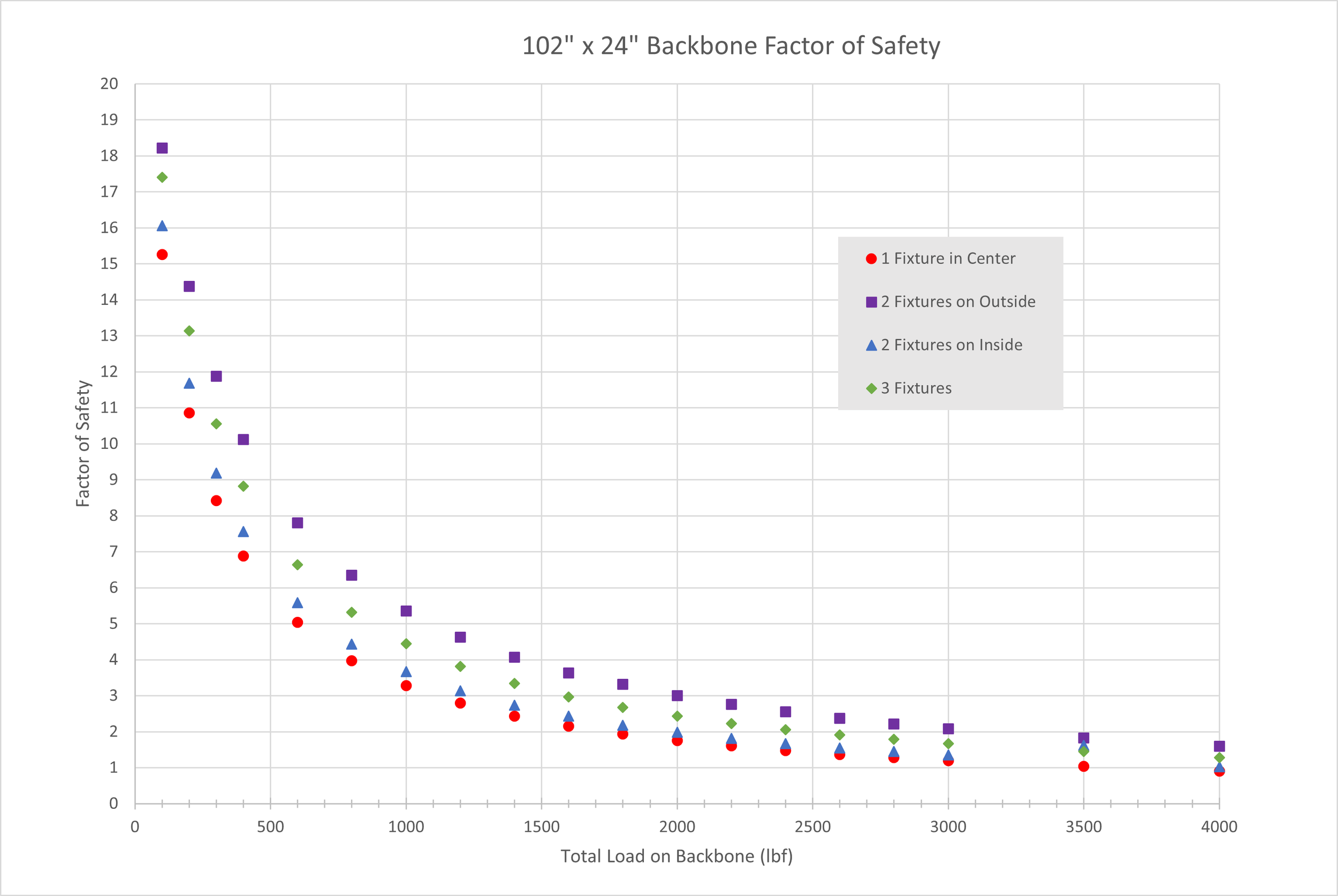

102in x 24in Backbone FOS.png

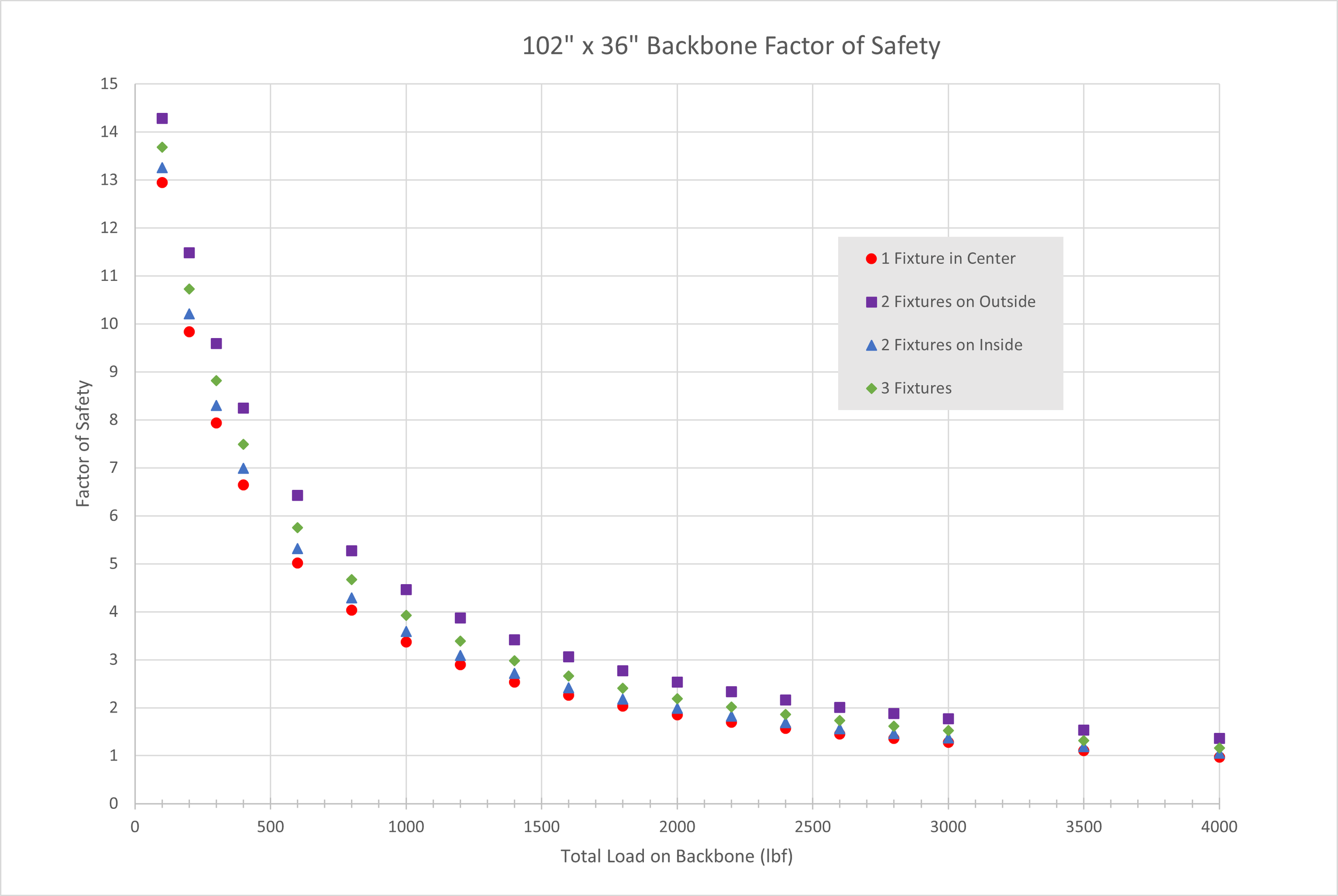

102in x 36in Backbone FOS.png

Weld-Cell Backbone Optimization-01.png

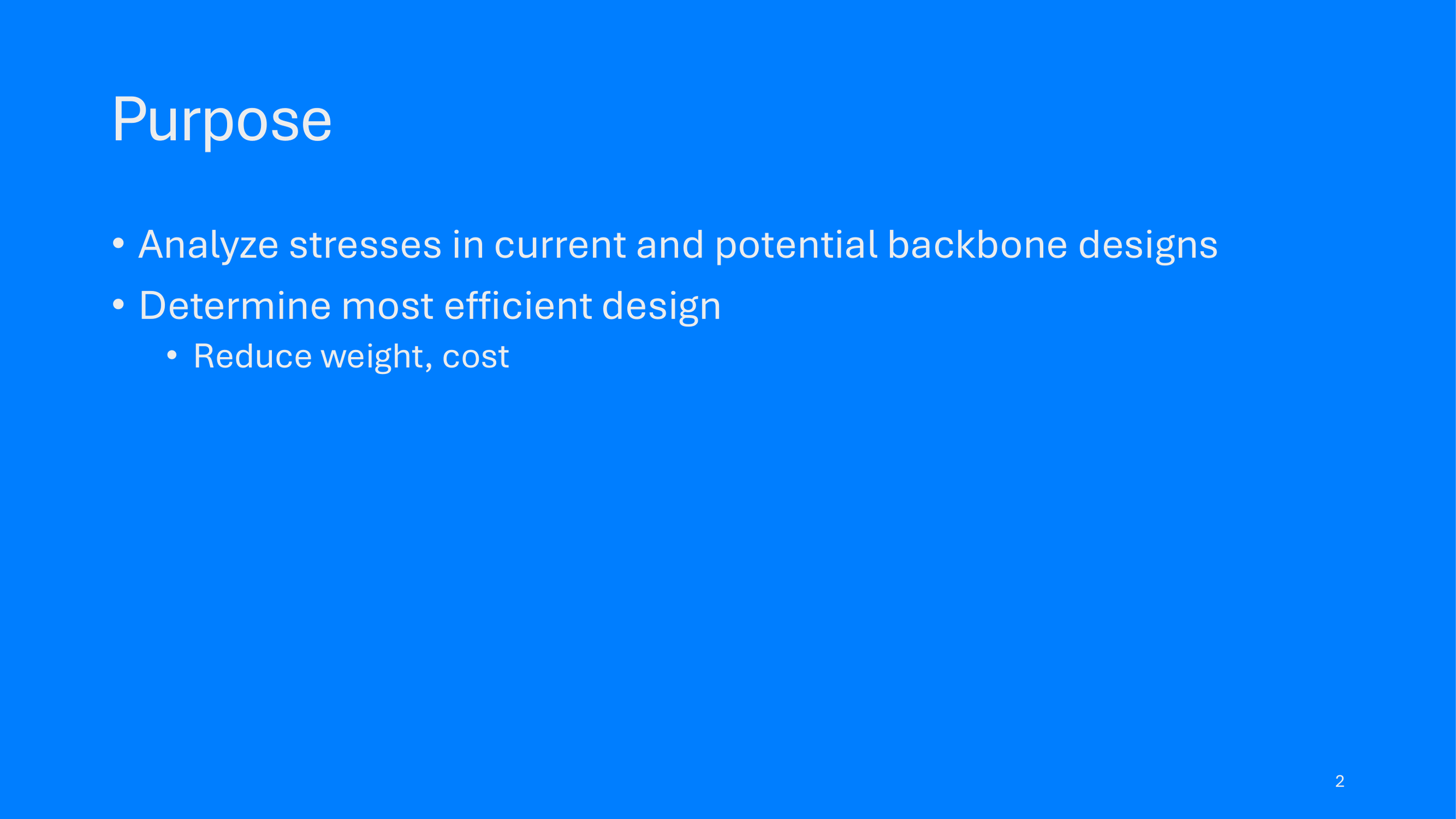

Weld-Cell Backbone Optimization-02.png

Weld-Cell Backbone Optimization-03.png

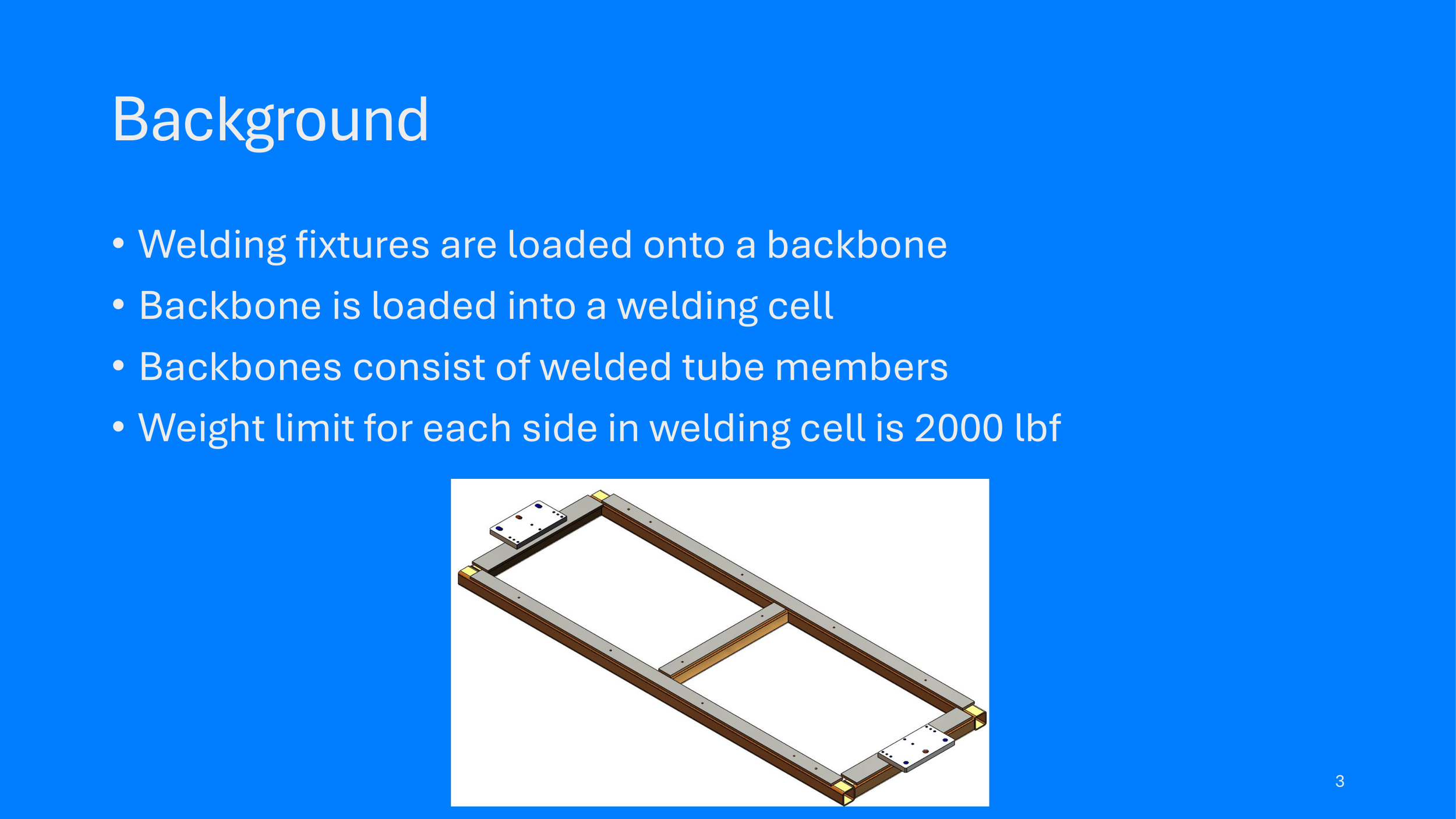

Weld-Cell Backbone Optimization-04.png

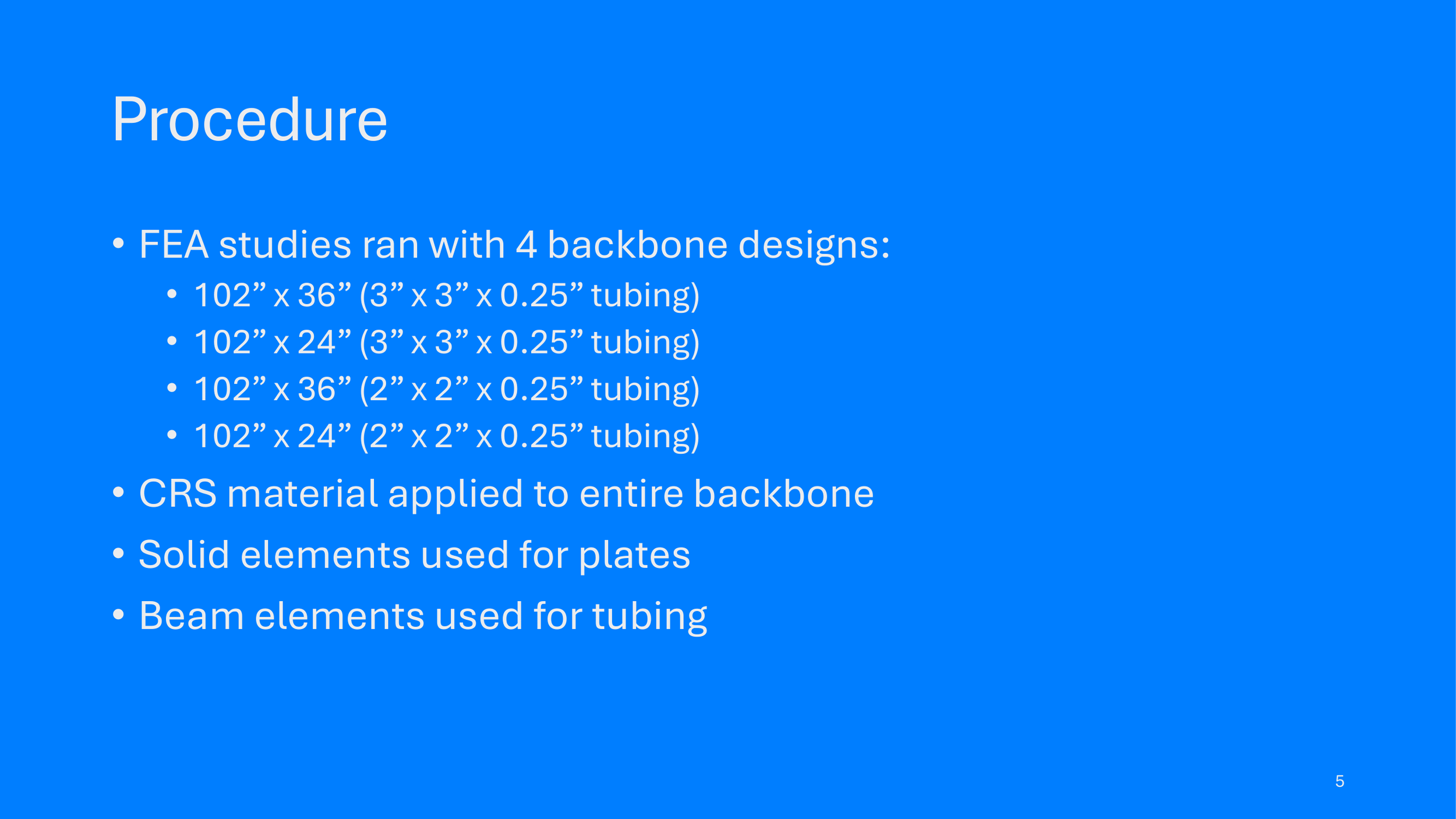

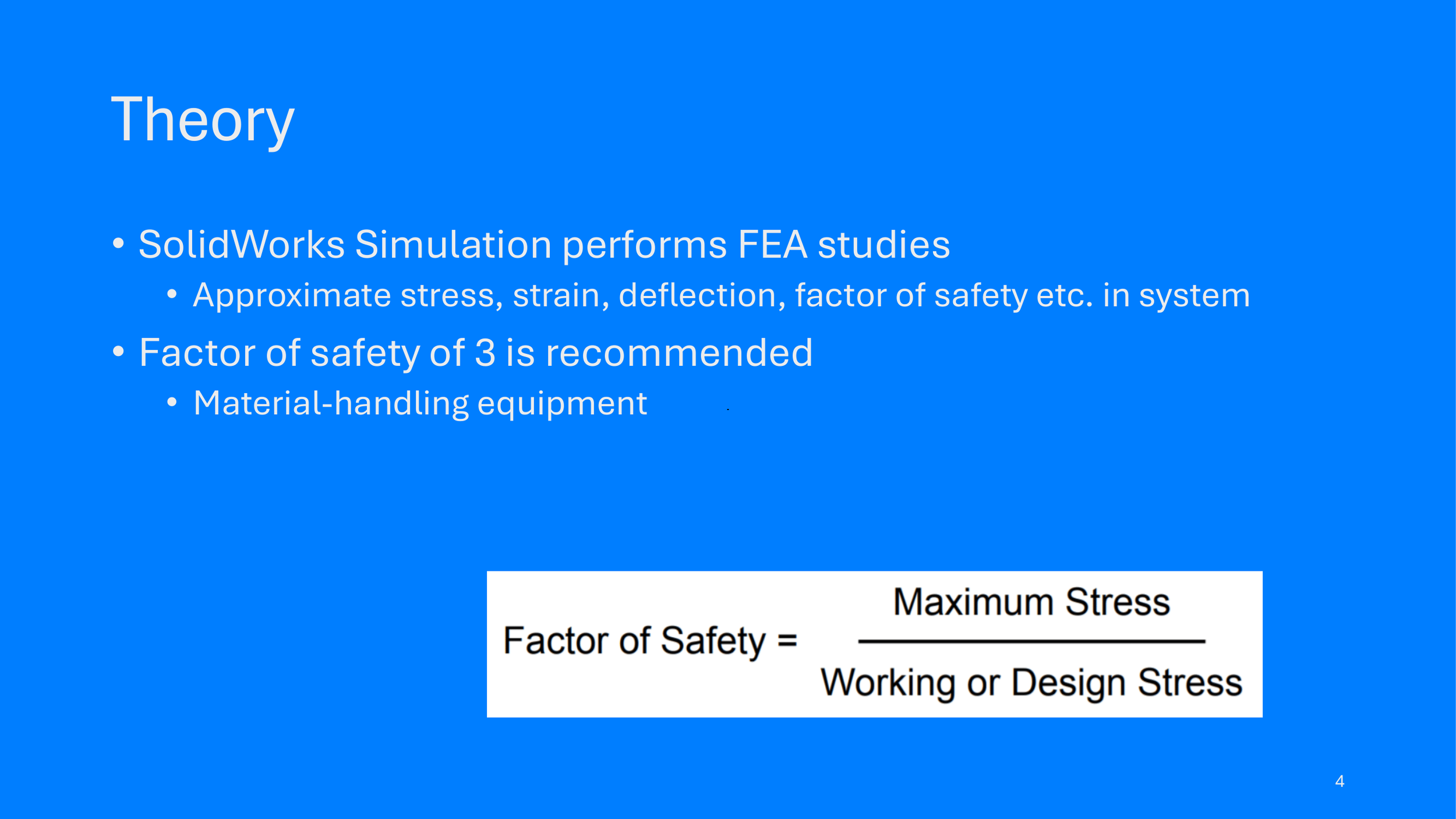

Weld-Cell Backbone Optimization-05.png

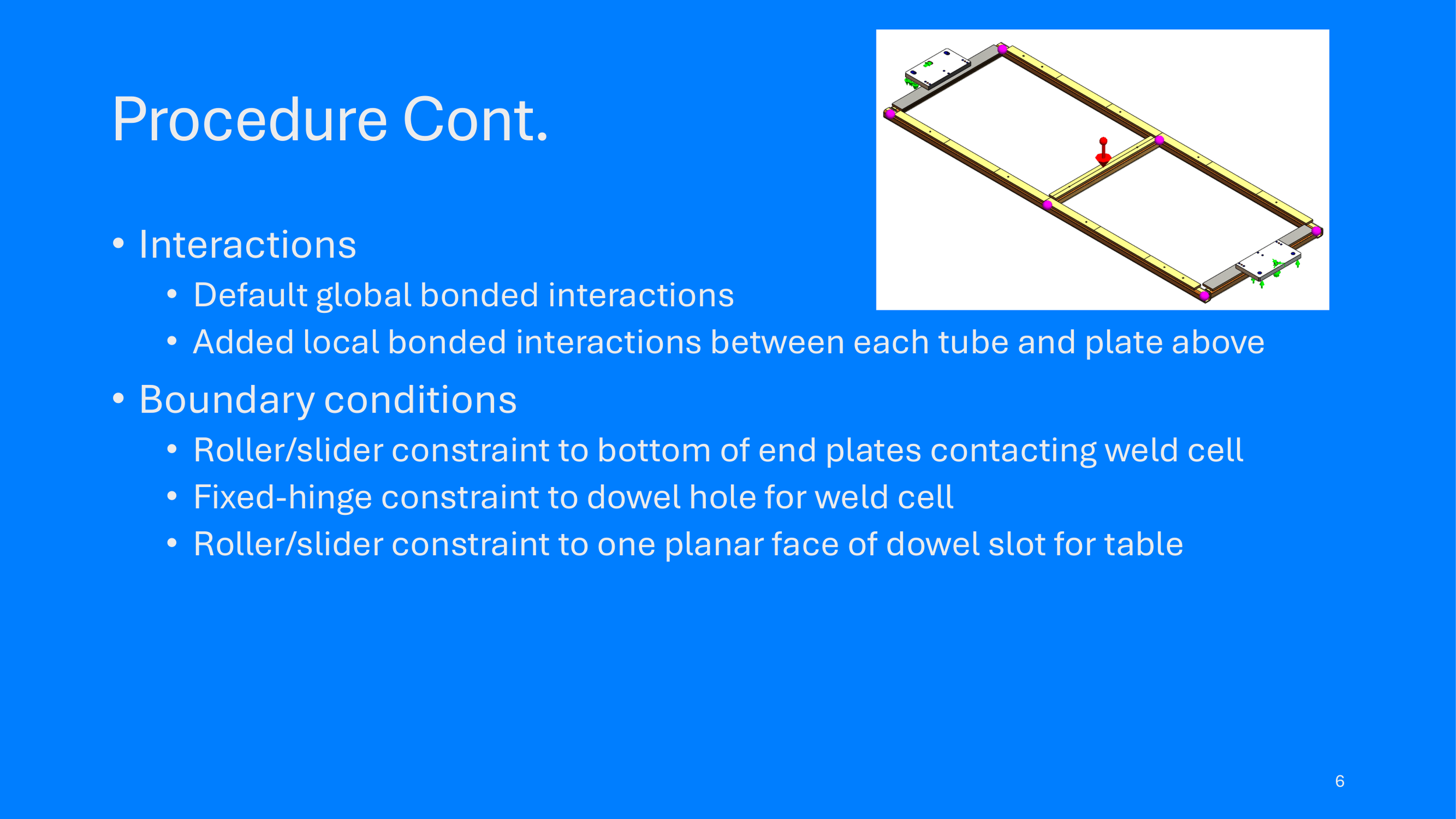

Weld-Cell Backbone Optimization-06.png

Weld-Cell Backbone Optimization-07.png

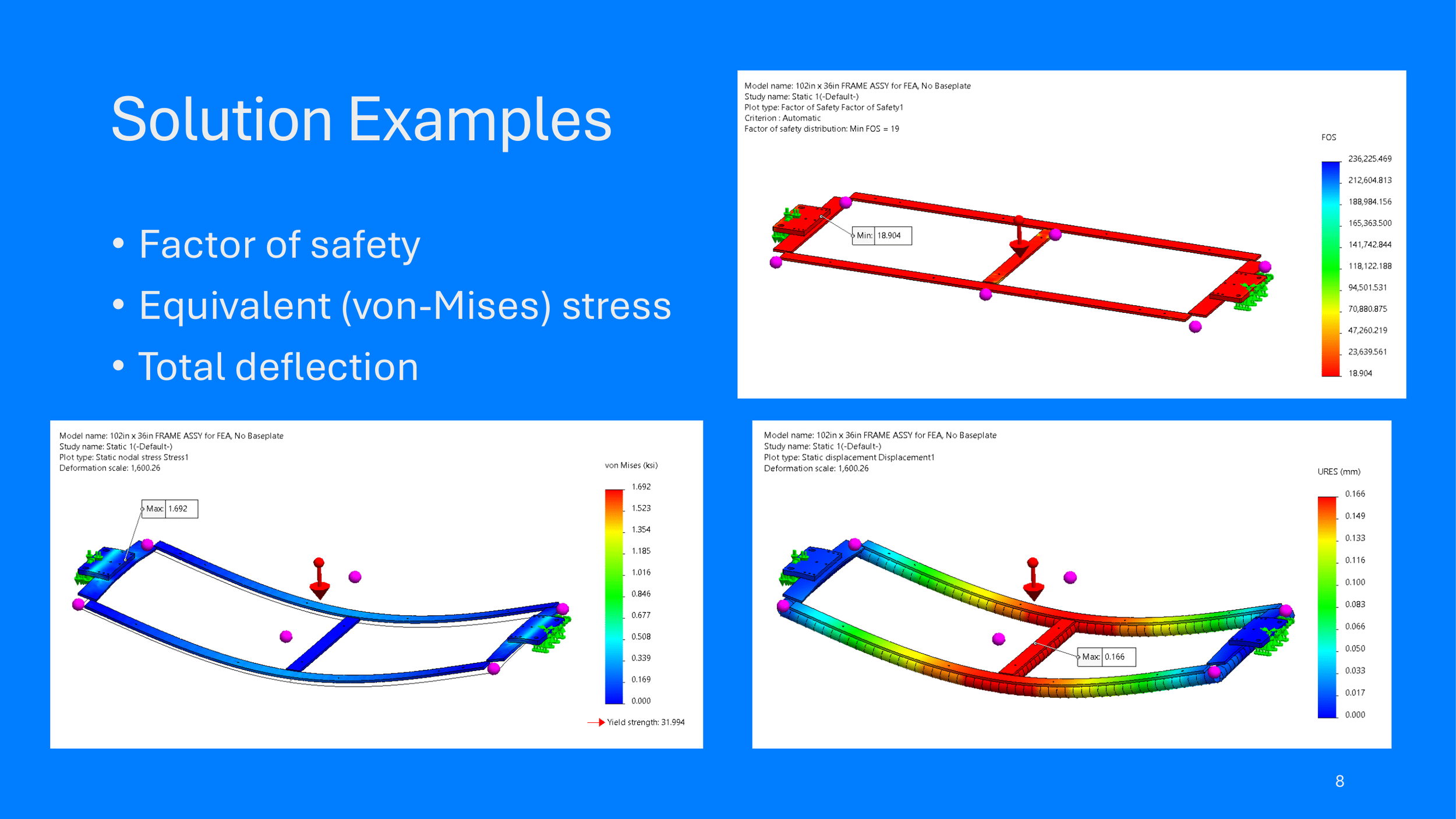

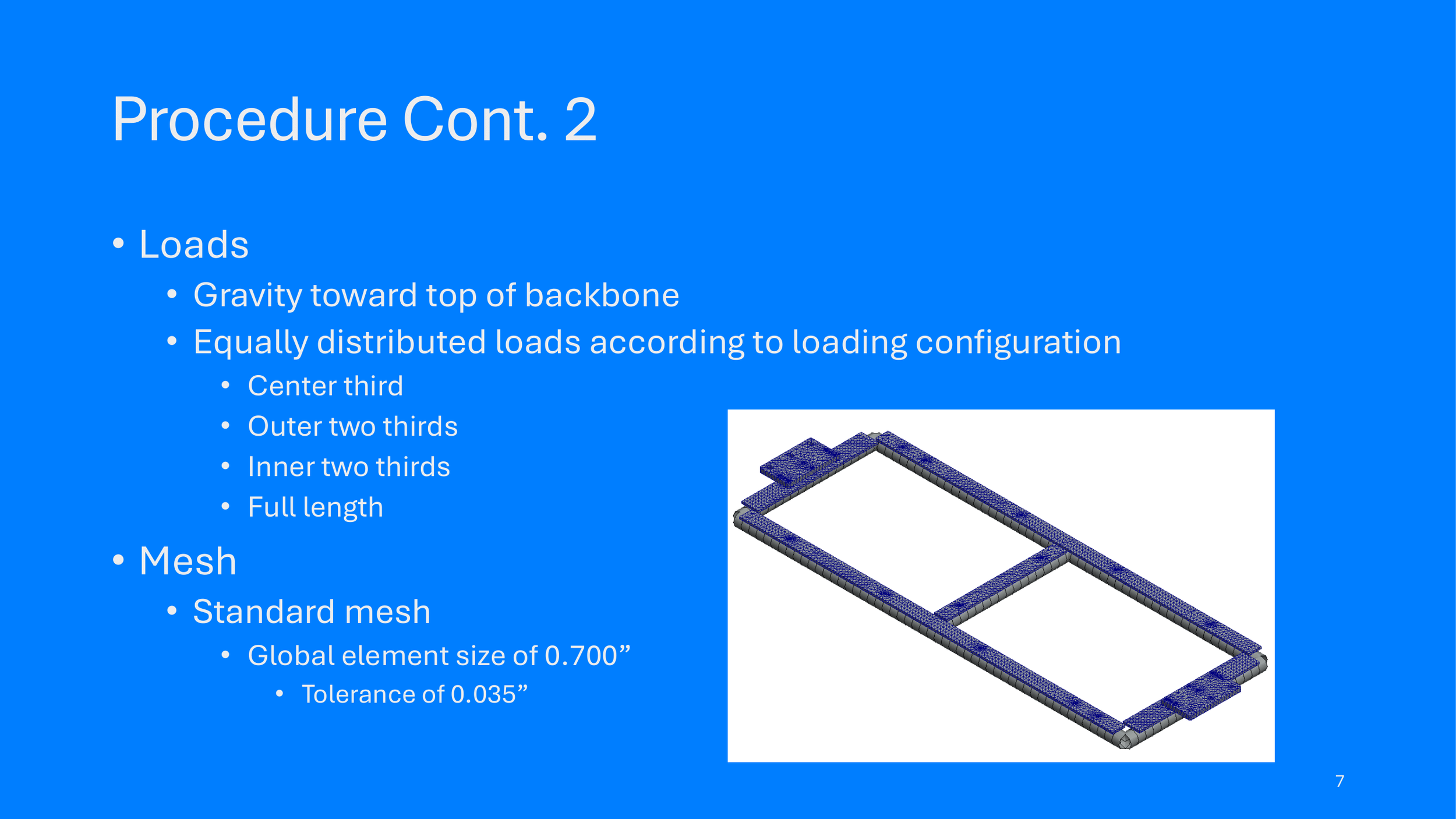

Weld-Cell Backbone Optimization-08.png

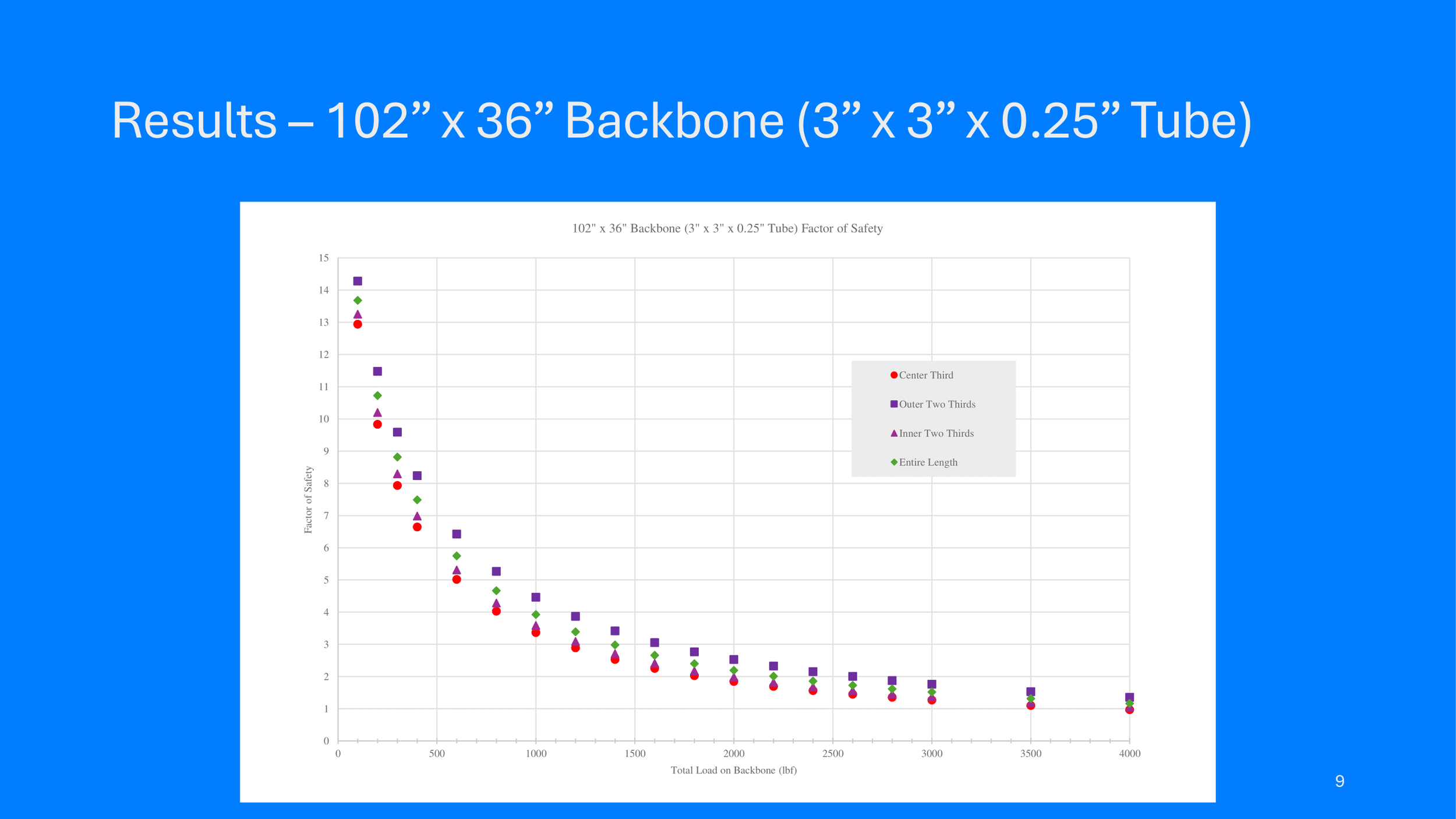

Weld-Cell Backbone Optimization-09.png

Weld-Cell Backbone Optimization-10.png

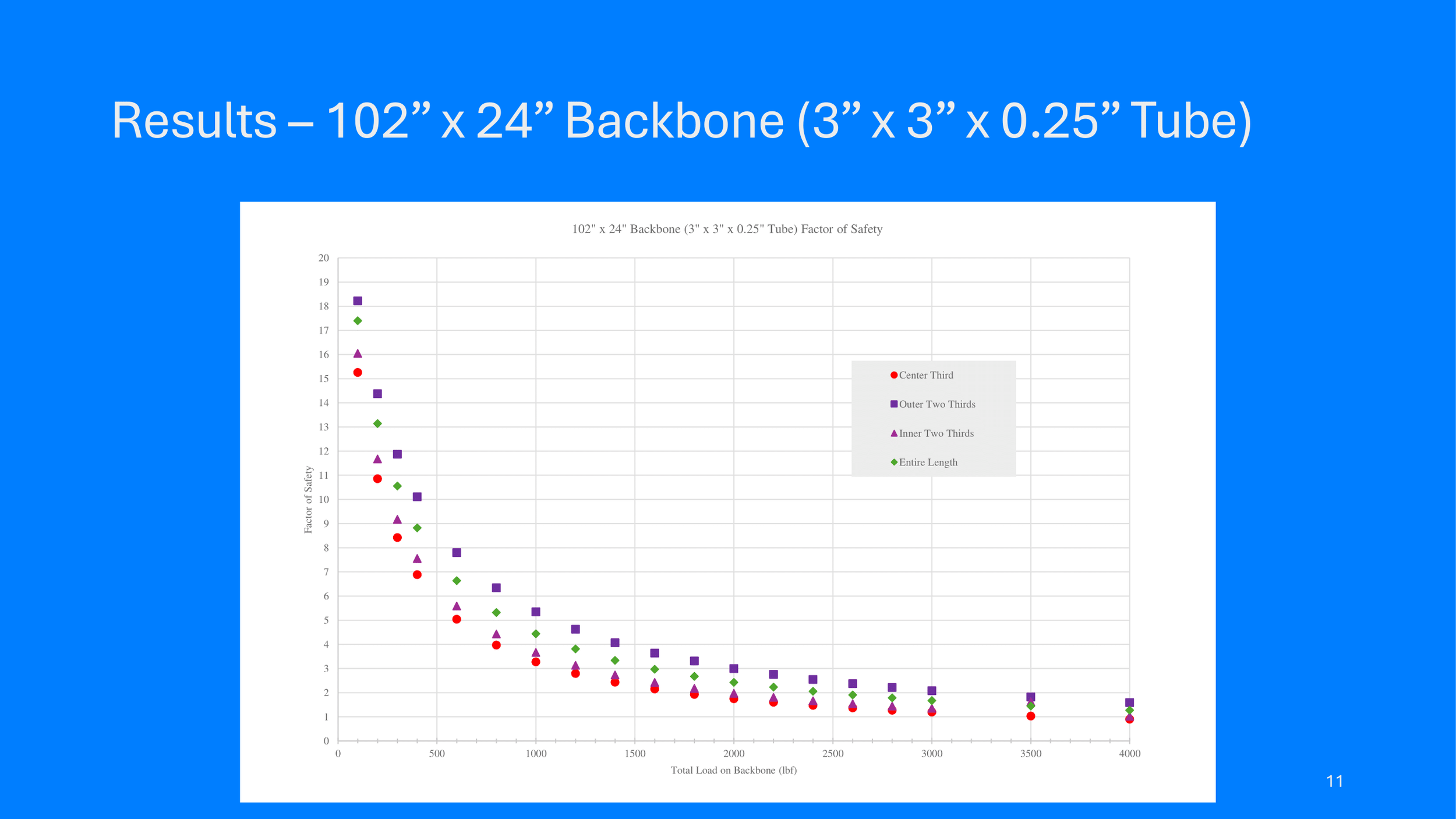

Weld-Cell Backbone Optimization-11.png

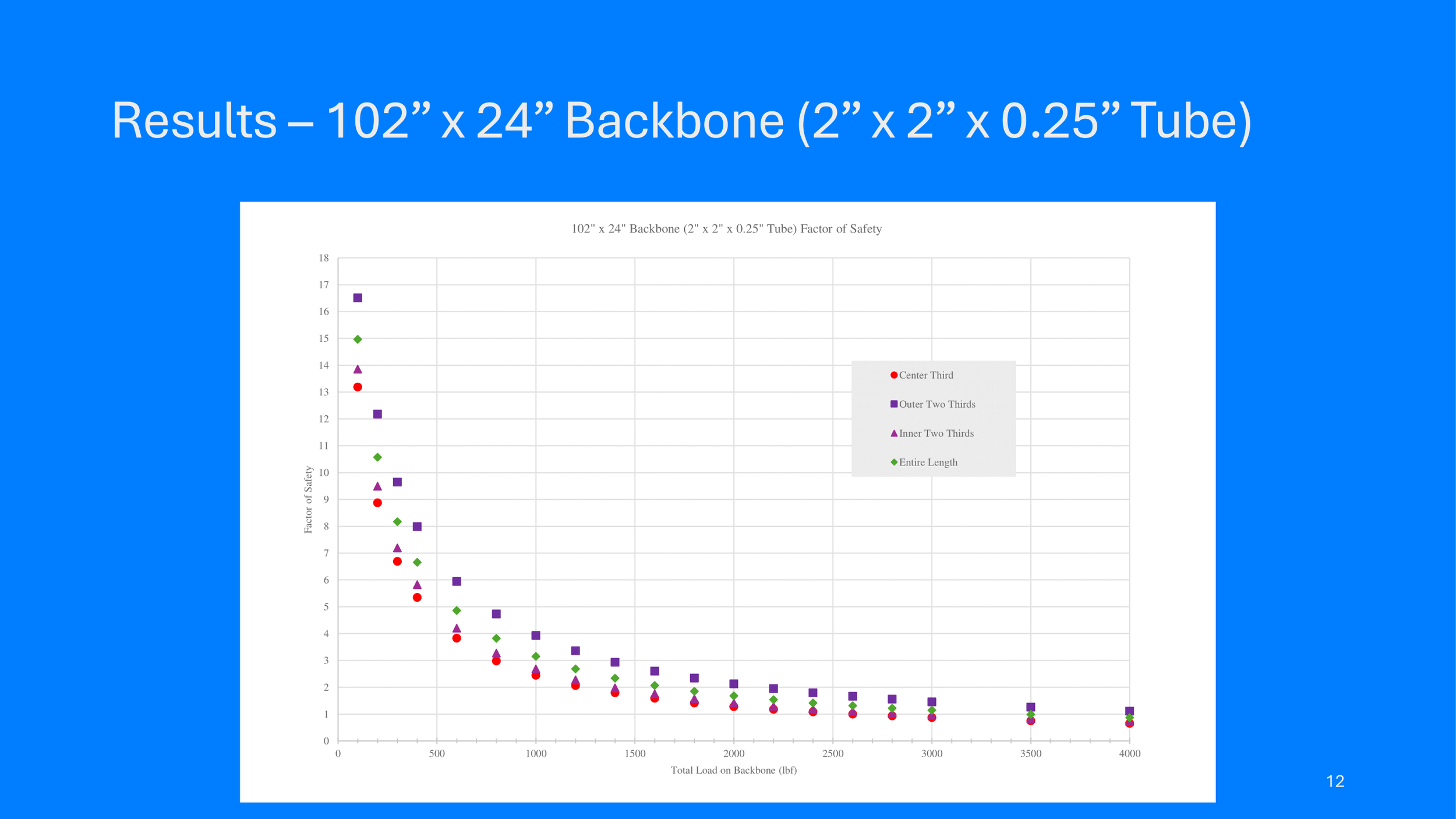

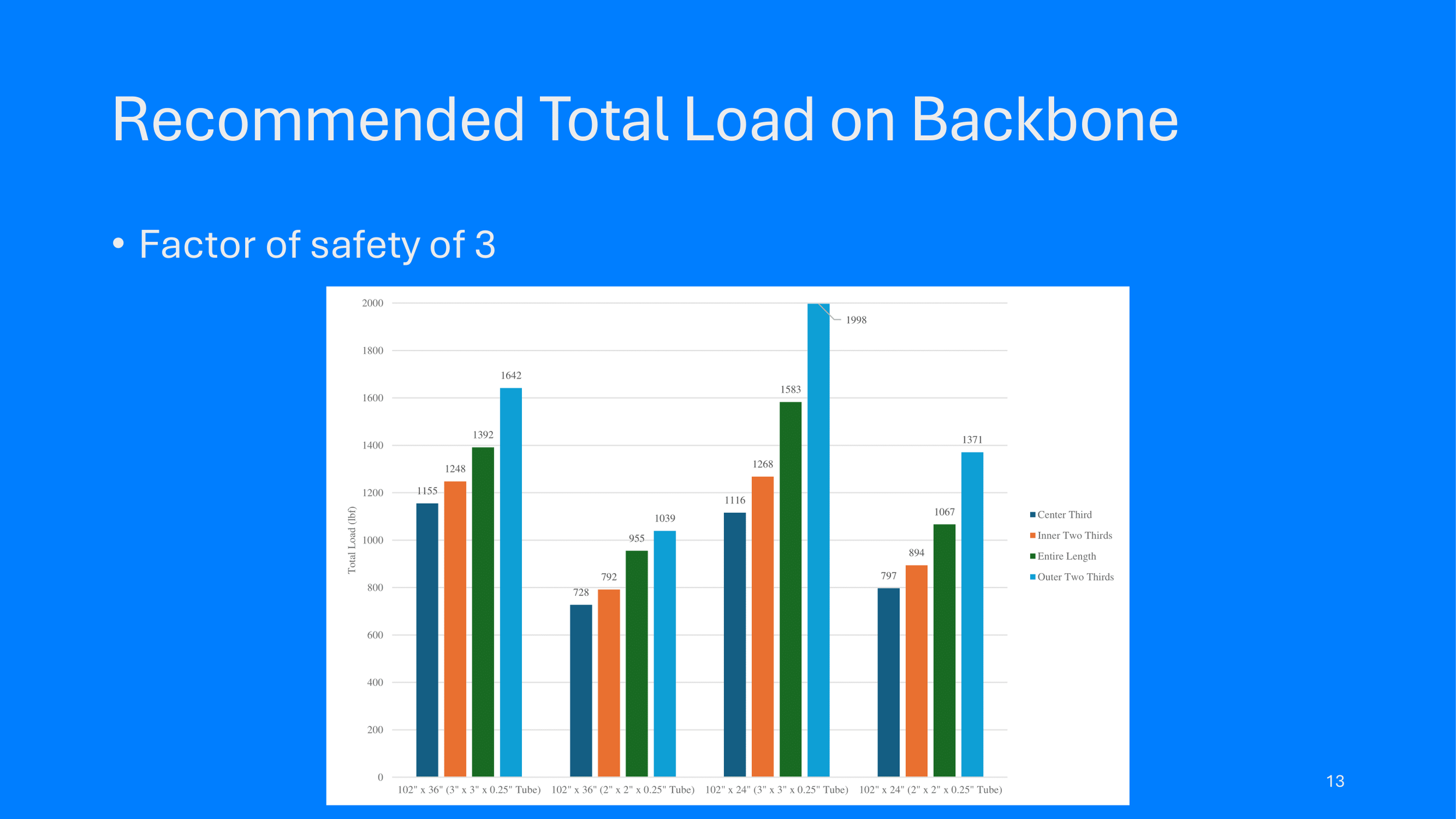

Weld-Cell Backbone Optimization-12.png

Weld-Cell Backbone Optimization-13.png

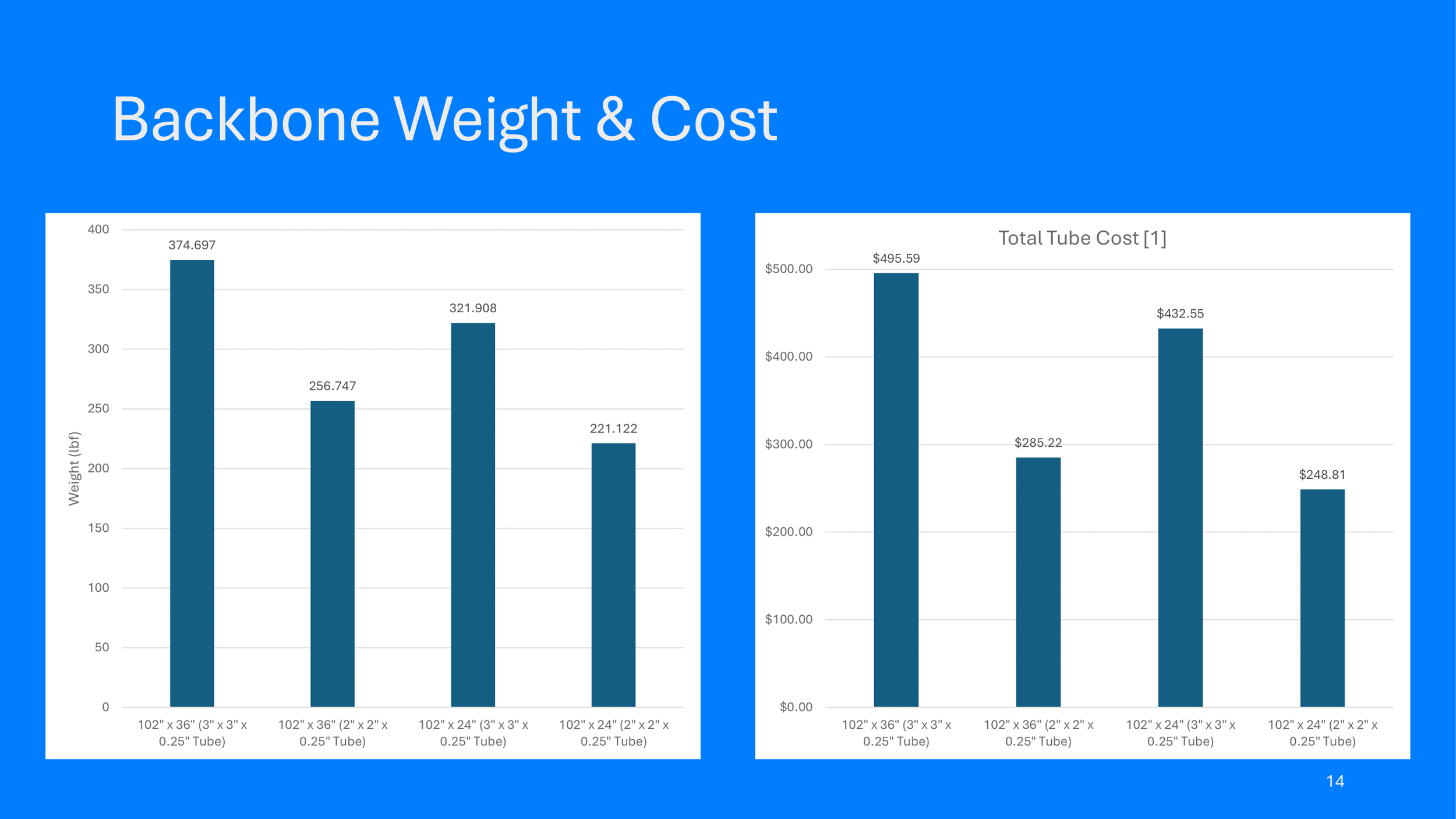

Weld-Cell Backbone Optimization-14.png

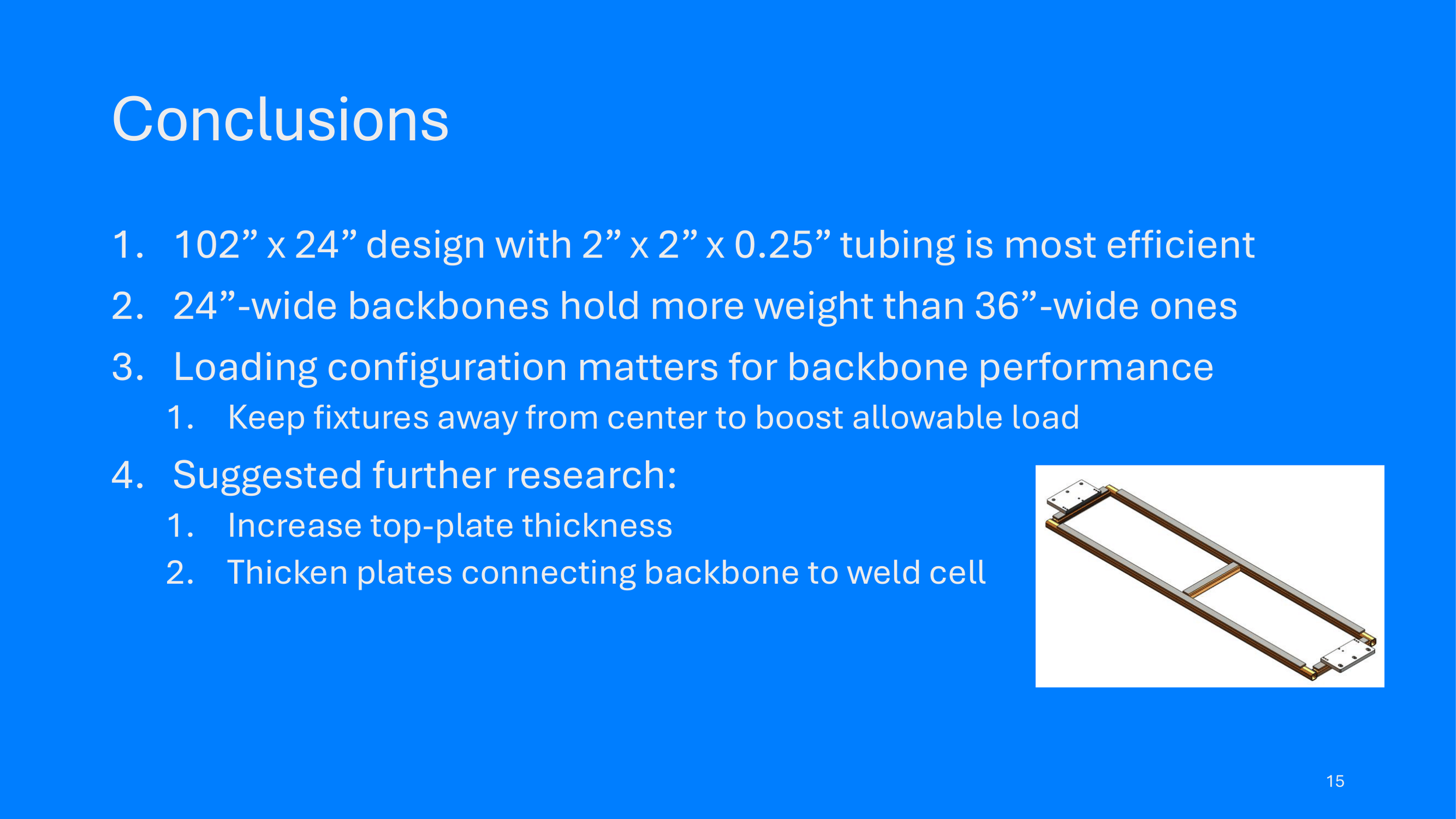

Weld-Cell Backbone Optimization-15.png

Weld-Cell Backbone Optimization-16.png

102in x 24in Frame Displacement, 4000 lbf.png

102in x 24in Frame FOS, 4000 lbf.png

102in x 24in Frame Von-Mises Stress, 4000 lbf.png

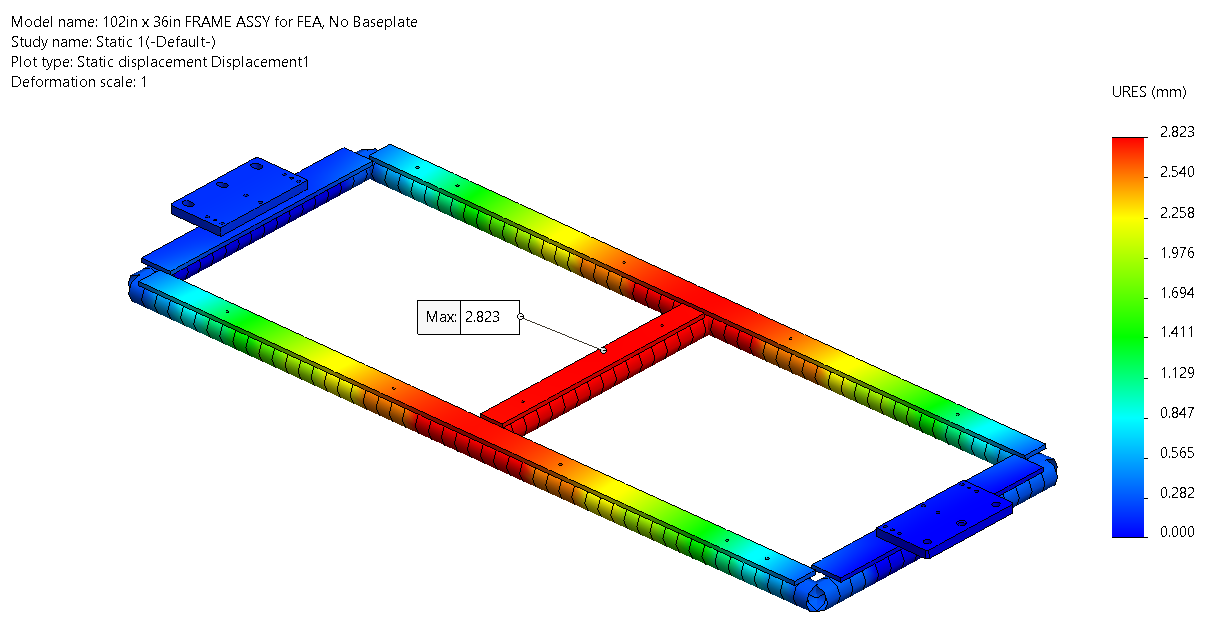

102in x 36in Frame Displacement, 4000 lbf.png

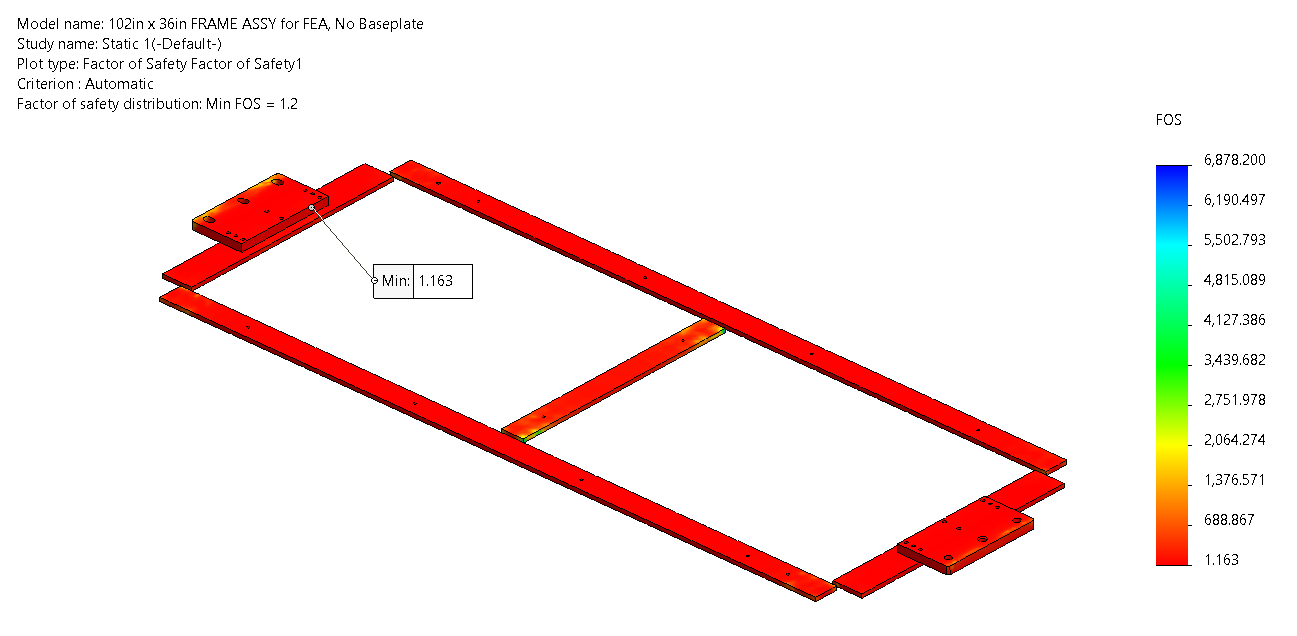

102in x 36in Frame FOS, 4000 lbf.png

102in x 36in Frame Von-Mises Stress, 4000 lbf.png
